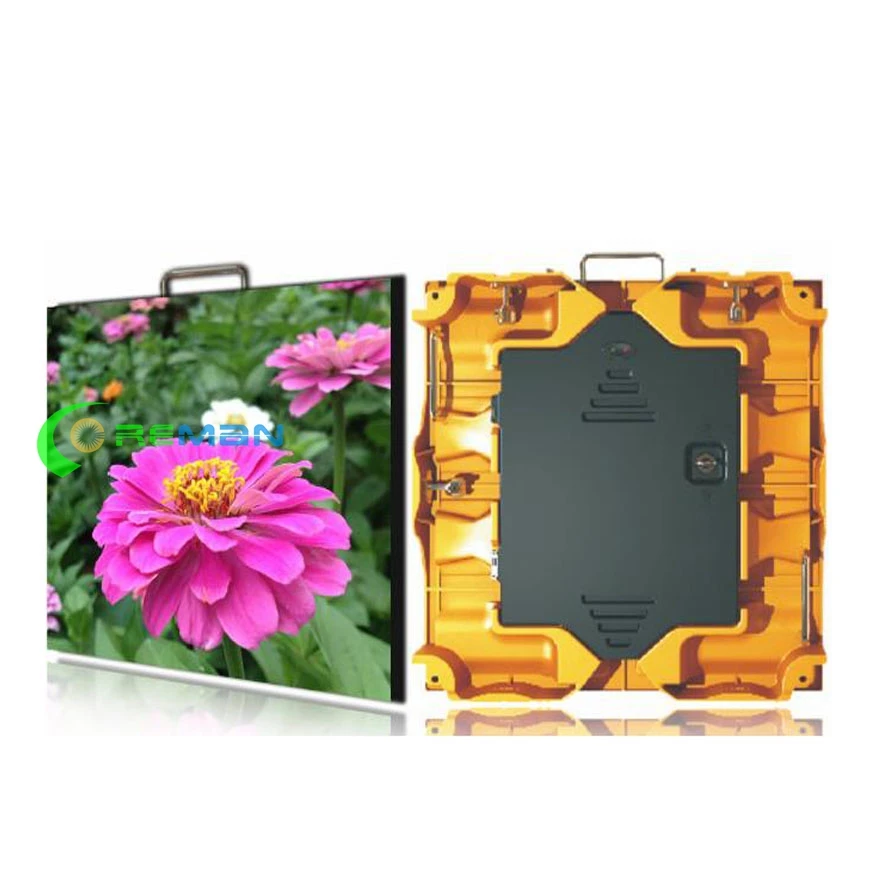

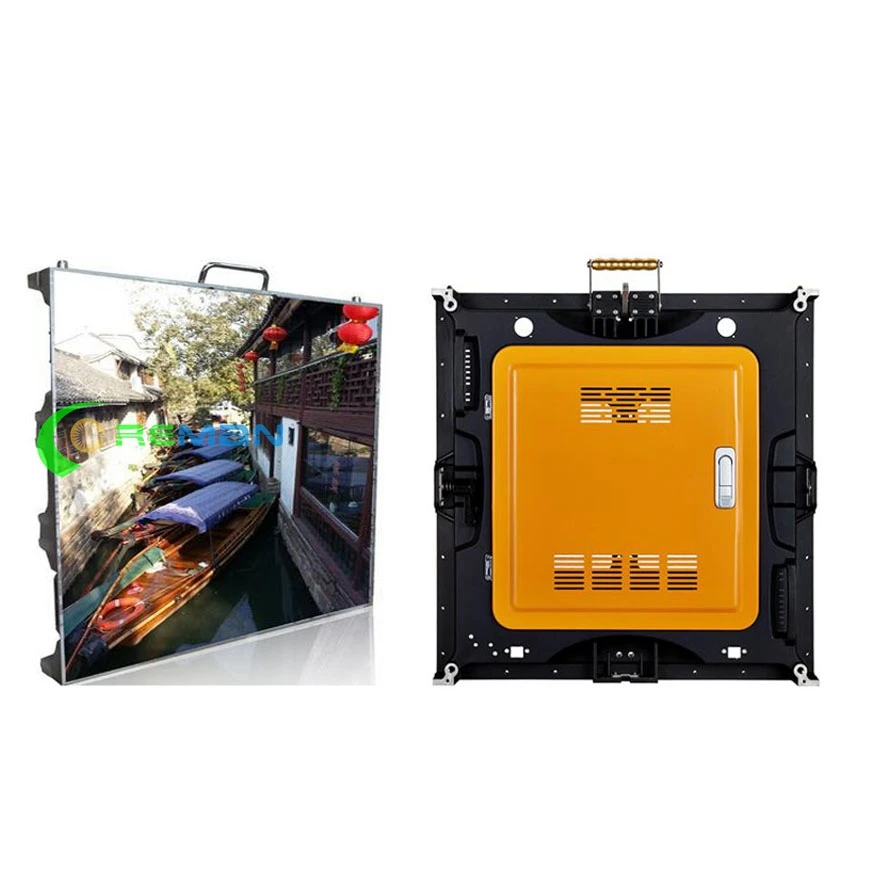

P4 Indoor HD LED Video Display stage led display fast installation full color P5 P6 P10
Product Description:
1. SMD 3 IN 1 led encapsulation technology ensure wide view angle and good uniformity
2. Made with die-casting aluminum or fixed installation new cabinets,strong profiles with beautiful
outlooking and durable

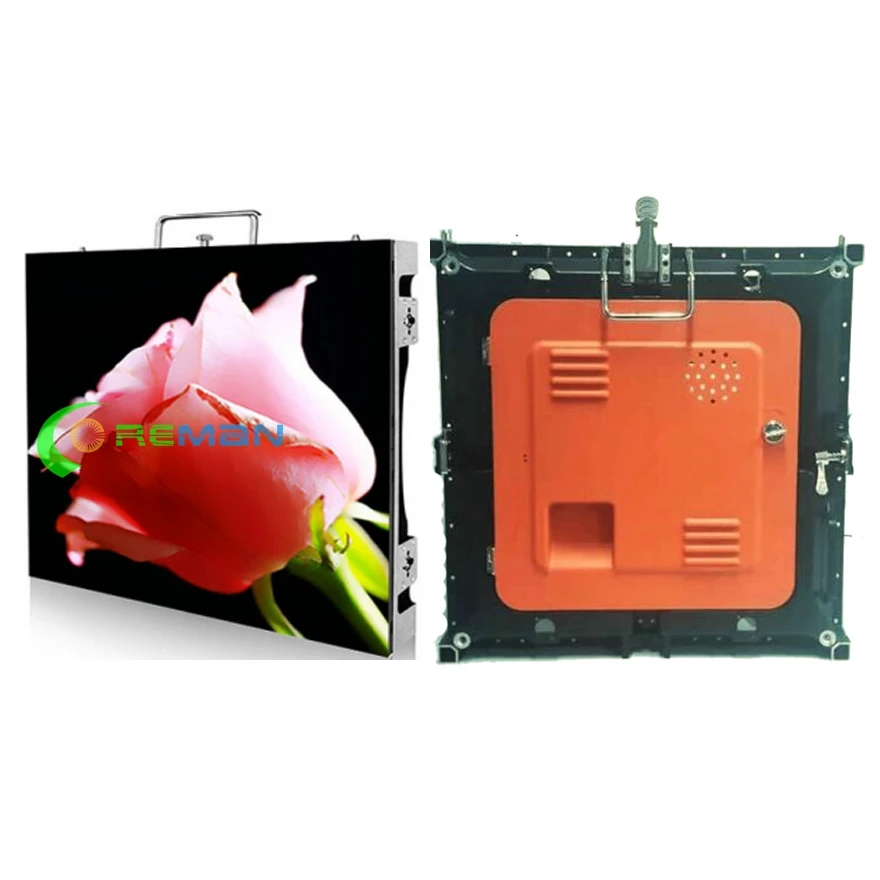

3. Slim and small cabinet iron and aluminium.
4. Flight case package,convenient to transport and collect,easy to move and good protection
5. Fixed installation and Rental design, easy to install and dismantle without any tools in few minutes,
save much time for installation and maintainance
6. Can be suspend or fixed installation, Seamless spliced,good outlooking
7. good heat dissipation
9.Packed with flightcase wooden case each 6 or 8pcs cabinets/case,also can as customer's requirement
10. Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.
Indoor fixed LED display: P2 P2.5, P3, P4, P5, P6, P7.62,P8, P10
Indoor rental LED display: P3, P4, P5, P6, P10, P3.91, P4.81, P6.25 ,
Outdoor fixed LED display: P4, P5, P6, P7.62, P8, P10
Outdoor rental LED display: P4, P5, P6, P8, P10, P6.667, P3.91, P4.81, P5.95, P6.25
Small pitch LED display: P1.667, P1.875, P1.904, P1.923, P2.0, P2.5
Front service maintenance LED screen: P10, P16, P20
Stadium perimeter LED screen: P8, P10, P16
Products application area:
1) Full color LED display : Equally or compactly make the red, green, blue
color in one dot, equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange,
station, port, marketplace, telecommunication, department, school, monitor,
restaurant, entertainment, meeting room,stage,concert,club show event.
| Pixel pitch |
3mm |
4mm |
| Module size |
192X192mm |
256x128mm |
| Resolution |
64X64 |
64X32dots |
| Density of pixel |
111111dots/m2 |
62500dots/m2 |
| LED Size |
SMD2121 |
SMD2121 |
| Pixel configuration |
1R1G1B 3in1 |
1R1G1B |
| Best viewing distance |
≥3m |
≥4m |
| Horizontal viewing angle |
140º |
140º |
| Viewing angle |
140º |
140º |
| Driving method |
1/16 1/32 scan |
1/16 scan |
| Brightness |
1000cd/sqm |
1000cd/m2 |
| Refresh rate |
960-1920Hz(Max 3840Hz) |
960-1920Hz(Max 3840Hz) |
| IP grade |
IP40 |
IP40 |
| Max power consumption |
30W/pcs |
38W/pcs |
| Avg power consumption |
18W/pcs |
20W/pcs |
| Input voltage |
DC5VAC110V/220V±10% |
AC110V/220V±10% DC5V |
| Storage temperature |
—40°C~65°C |
—40°C~65°C |
| Working temperature |
—20°C~55°C |
—20°C~55°C |
| MTBF |
≥10,000 hours |
≥10,000 hours |
| Life span |
≥100,000hours |
≥100,000hours |
| Control system |
Nova/Linsn/Colorlight/DBstar etc |
Nova/Linsn/Colorlight/DBstar etc |
| Specification might be slightly different based on different components |

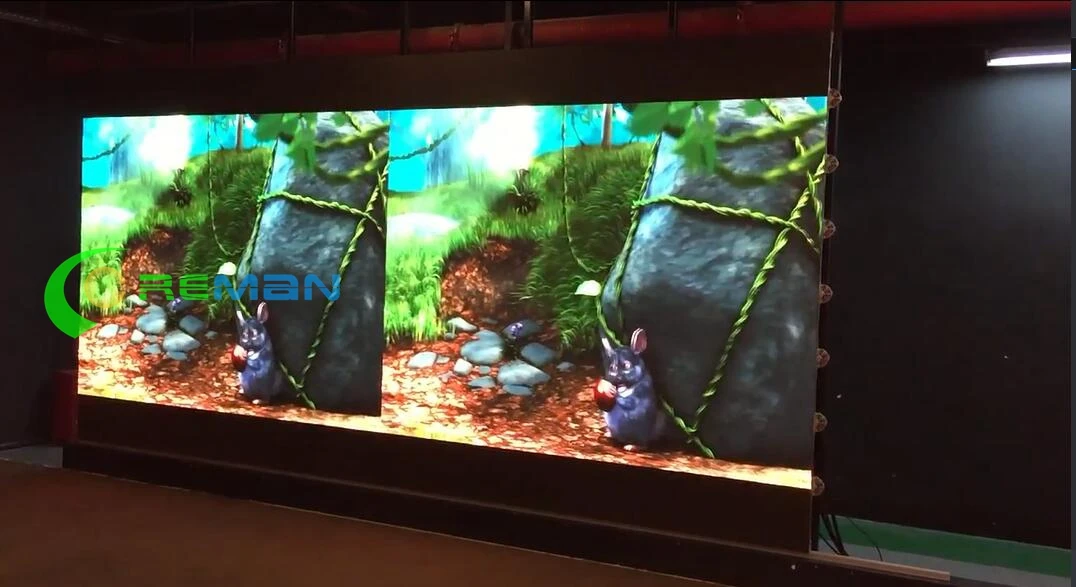

indoor rental full color stage led display
