P3 Rental Stage LED Display for Indoor/ Outdoor Movable Stage Back Wall video P5 P6 P10

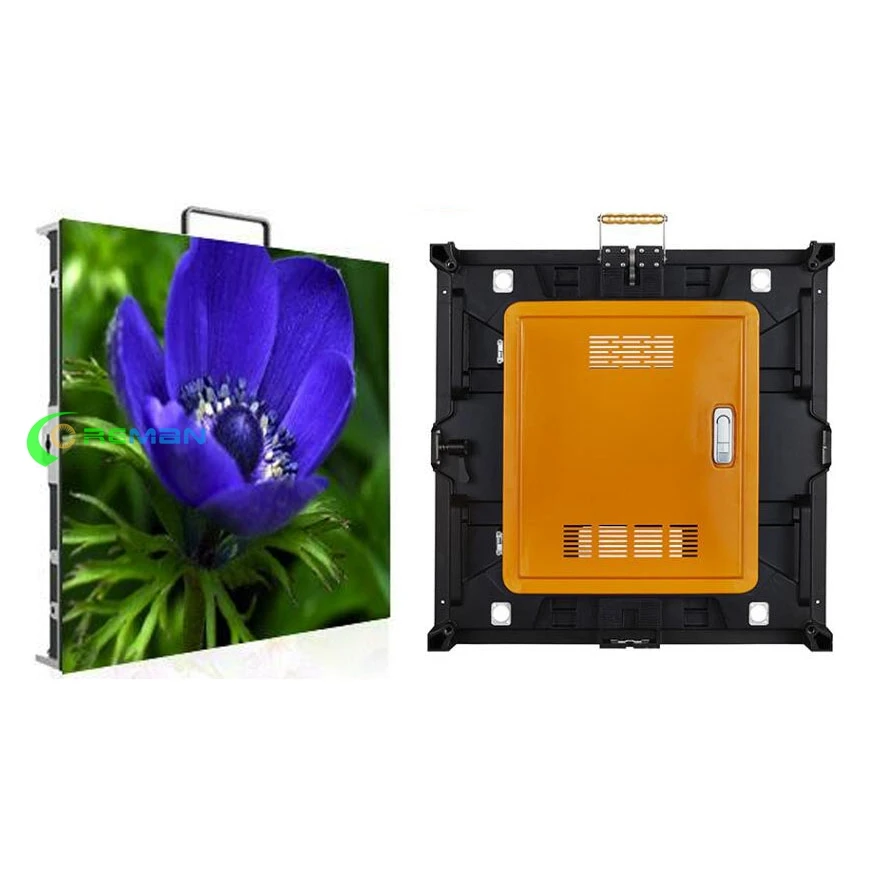

P3 SMD Indoor Full Color LED Display Screen
low failure rate
Using sophisticated type of material, in terms of testing: instrument light intensity
distribution, it is a direct measurement of the LED lamp light intensity, viewing angle,
wavelength, and other optical properties; aging test LED lamps attenuation; an IC testing
stand, strict control the quality of the IC. High-temperature aging at the end of the production
process and cabinet vibration test, good control of Weld and other issues.
fast locks and assembling pins, flatness and seamless are greatly increased, less
than 0.01mm , easy to install and dismantle
5. Seamless connection, less than 0.1mm between 2 cabinet.
Indoor fixed LED display: P2 P2.5, P3, P4, P5, P6, P7.62,P8, P10
Indoor rental LED display: P3, P4, P5, P6, P10, P3.91, P4.81, P6.25 ,
Outdoor fixed LED display: P4, P5, P6, P7.62, P8, P10
Outdoor rental LED display: P4, P5, P6, P8, P10, P6.667, P3.91, P4.81, P5.95, P6.25
Small pitch LED display: P1.667, P1.875, P1.904, P1.923, P2.0, P2.5
Front service maintenance LED screen: P10, P16, P20
Stadium perimeter LED screen: P8, P10, P16
Products application area:
1) Full color LED display : Equally or compactly make the red, green, blue
color in one dot, equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange,
station, port, marketplace, telecommunication, department, school, monitor,
restaurant, entertainment, meeting room,stage,concert,club show event.
| Pixel pitch |
3mm |
2.5mm |
| Module size |
192X192mm |
320x160mm |
| Resolution |
64X64 |
128X64dots |
| Density of pixel |
111111dots/m2 |
160000dots/m2 |
| LED Size |
SMD2121 |
SMD2121 |
| Pixel configuration |
1R1G1B 3in1 |
1R1G1B |
| Best viewing distance |
≥3m |
≥2m |
| Horizontal viewing angle |
140º |
140º |
| Viewing angle |
140º |
140º |
| Driving method |
1/16 1/32 scan |
1/16 1/32 scan |
| Brightness |
1000cd/sqm |
1000cd/m2 |
| Refresh rate |
960-1920Hz(Max 3840Hz) |
960-1920Hz(Max 3840Hz) |
| IP grade |
IP40 |
IP40 |
| Max power consumption |
30W/pcs |
38W/pcs |
| Avg power consumption |
18W/pcs |
20W/pcs |
| Input voltage |
DC5VAC110V/220V±10% |
AC110V/220V±10% DC5V |
| Storage temperature |
—40°C~65°C |
—40°C~65°C |
| Working temperature |
—20°C~55°C |
—20°C~55°C |
| MTBF |
≥10,000 hours |
≥10,000 hours |
| Life span |
≥100,000hours |
≥100,000hours |
| Control system |
Nova/Linsn/Colorlight/DBstar etc |
Nova/Linsn/Colorlight/DBstar etc |
| Specification might be slightly different based on different components |
